Services and methods

Chemical and mineralogical composition

  • Analysis of major and minor element oxides using X-ray fluorescence analysis (XRF) on fused beads
  • Calculation of the clinker phase contents acc. Bogue (C3S, C2S, C3A, C4AF, C2F, C) and other parameters (lime saturation factor, silica ratio, alumina ratio, degree of sulfatisation, etc.) based on the XRF data
  • Determination of the contents of clinker and other phases using quantitative X-ray diffraction analysis (QXRD) based in Rietveld refinement
  • QXRD on the residue after methanol-salicylic acid digestion (M/S digestion); the digestion dissolves the calcium silicates from the sample and allows more accurate quantification of cubic and orthorhombic C3A, C4AF, periclase alkali sulphates and other minor clinker phases

Clinker Microstructure

  • Assessment of the granule sizes, dust content, colour, burning degree, etc.

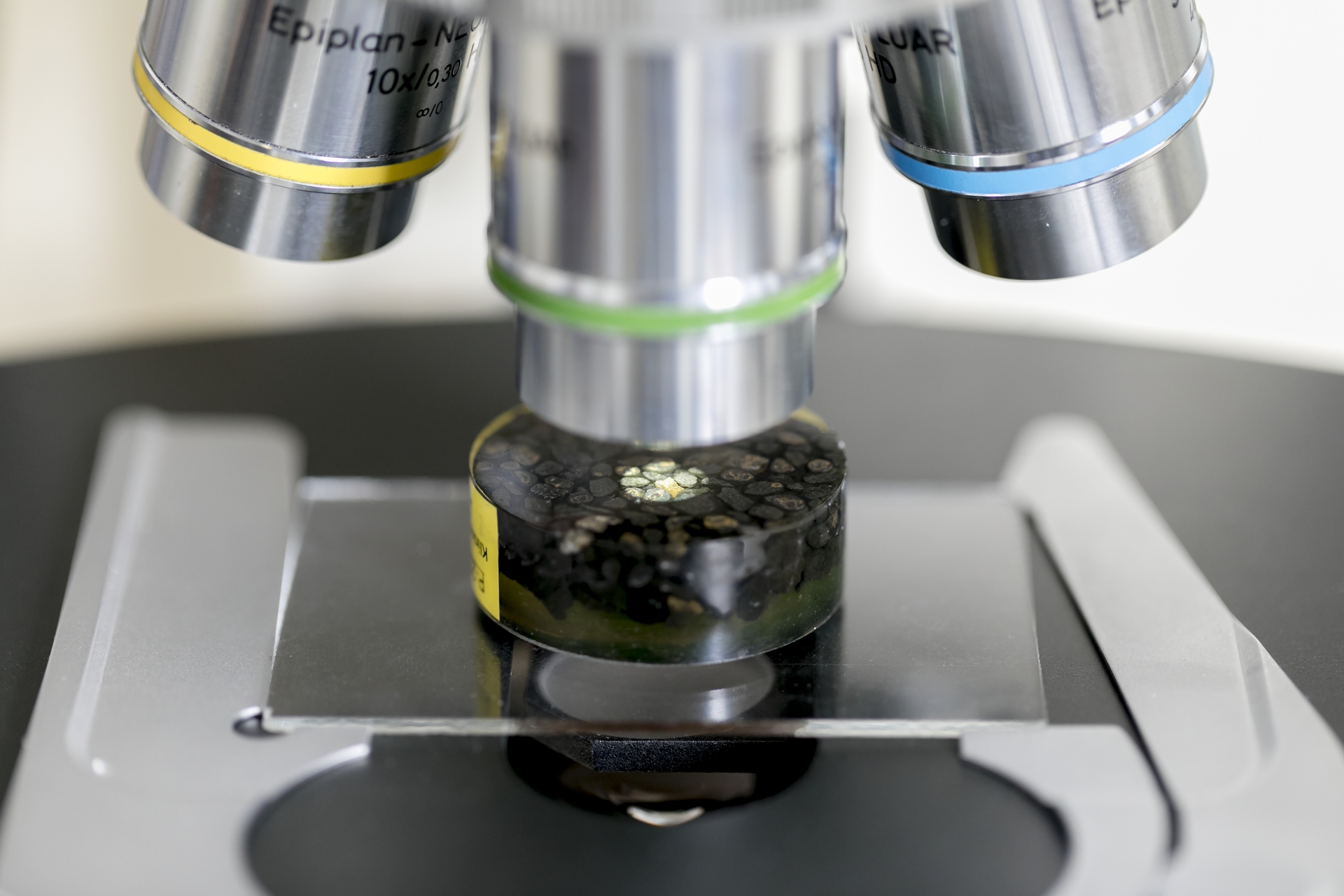

  • Clinker microscopy - preparation and reflected light microscopy of polished clinker sections
  • Qualitative evaluation of porosity, cluster formation, phase morphology, burning degree, phase formation disturbances, inclusions, etc.
  • Measurement of crystal sizes (alite, belite, matrix) and cluster sizes, evaluation of cooling conditions
  • Evaluation of suitability of raw materials and kiln feed (fineness, homogeneity), fuels and fuel ashes, burning conditions, precooling and cooling, redox conditions in the clinker bed

Ono’s method

  • Evaluation of heating rate, maximum temperature, length of the sintering zone and cooling conditions

Complementary methods

Your benefits

  • Our expertise is based on many decades of tradition of interdisciplinary research and analysis of clinker
  • We adapt the scope of the analyses and the approach to your problem in the best possible way (e.g. solving acute problems or optimisation of the process or product)
  • Documentation of the results in comprehensible technical reports
  • Derivation of practical measures for implementation
  • Regular monitoring of important clinker parameters and microstructural properties and presentation in clear table-based short reports for long-term control of process and product quality

Are you interested?

  • We are happy to send you exemplary Technical Reports or table-based Reports of Analysis
  • Are you particularly interested in clinker microscopy? In the following download area you will find the VDZ picture atlas "Microscopy of cement clinker"  and other interesting VDZ publications
  • We would also be pleased to offer you customer-specific training courses on the subjects of XRF, QXRD, clinker microscopy or other methods mentioned above - at VDZ or at your premises

Downloads

30.06.1977

Publications

Microscopy of Cement Clinker: Picture Atlas

Verein Deutscher Zementwerke, VDZ, Ed. Microscopy of Cement Clinker: Picture Atlas. Duesseldorf: Bet.-Verl., 1977

Read publication

01.06.1965

Publications

Mikroskopie des Zementklinkers: Bilderatlas

Verein Deutscher Zementwerke, VDZ, Hrsg. Mikroskopie des Zementklinkers: Bilderatlas. Düsseldorf: Beton-Verl., 1965 (Die Publikation ist auch in englischer Sprache abrufbar.)

Read publication

15.05.2024

Publications

A brief history of light microscopy applied to Portland cement clinker

In: Wetzel, Alexander; Schleiting, Maximilian. Book of extended abstracts of the 19th Euroseminar on Microscopy Applied to Building Materials (EMABM) - Book of extended abstracts (Kassel 12.-15.05.2024). Kassel, 2024. Available at: https://dx.doi.org/doi:10.17170/kobra-202403269873

Read publication

30.06.2019

Publications

Influences of the oxyfuel cooling medium on mineralogy and microstructure of Portland cement clinker

17th EMABM, University of Toronto, Toronto, Canada, May 20-23, 2019 Hrsg. Proceedings of the 17th Euroseminar on Microscopy Applied to Building Materials, Toronto (Canada), 20. to 23. May 2019

Read publication

09.01.2017

Publications

Alite Decomposition vs. Alite Corrosion

École Polytechnique Fédérale de Lausanne, EPFL, Hrsg. 16th Euroseminar on Microscopy Applied to Building Materials : EMABM 2017 (Les Diablerets 14.-17.May 2017). Lausanne: École Polytechnique Fédérale de Lausanne, EPFL, 2017, S.23-26

Read publication

09.01.2015

Publications

Evaluation of portland cement clinker with optical microscopy - case studies III

Copuroglu, Oguzhan (Hrsg): Proceedings of the 15th Euroseminar on microscopy applied to building materials (Delft 17.-19.06.2015). Delft, 2015, S.33-37

Read publication

09.01.2012

Publications

Effects of alternative fuels and raw materials on clinker properties

International Cement Microscopy Association, ICMA (Hrsg): Proceedings of the 34th international conference on cement microscopy (Halle/Saale 01.-04.04.2012). ICMA, 2012

Read publication

09.01.2011

Publications

Evaluation of portland cement clinker with optical microscopy - case studies II

13th Euroseminar on Microscopy Applied to Building Materials (Ljubljana 14.-18.06.2011). Ljubljana: Slovenian National Building and Civil Engineering Institute, 2011, 7 S.

Read publication

09.01.2009

Publications

Evaluation of portland cement clinker with optical microscopy - case studies

12th Euroseminar on Microscopy Applied to Building Materials: Full Paper (Dortmund 15.-19.09.2009). Dortmund: TU Dortmund, 2009, 10 S.

Read publication
